Bell States

The Bell states are four states that can be created when two qubits are maximally entangled. The four states are:

  1. Phi Plus State

  2. Phi Minus State

  3. Psi Plus State

  4. Psi Minus State

IBM Quantum Composer: https://quantum.ibm.com/composer/

1. Phi Plus State

\(\ket{\Phi^+} = \frac{\ket{00} + \ket{11}}{\sqrt{2}}\)

60fced1ec0814fb2a4e04db4194624e8

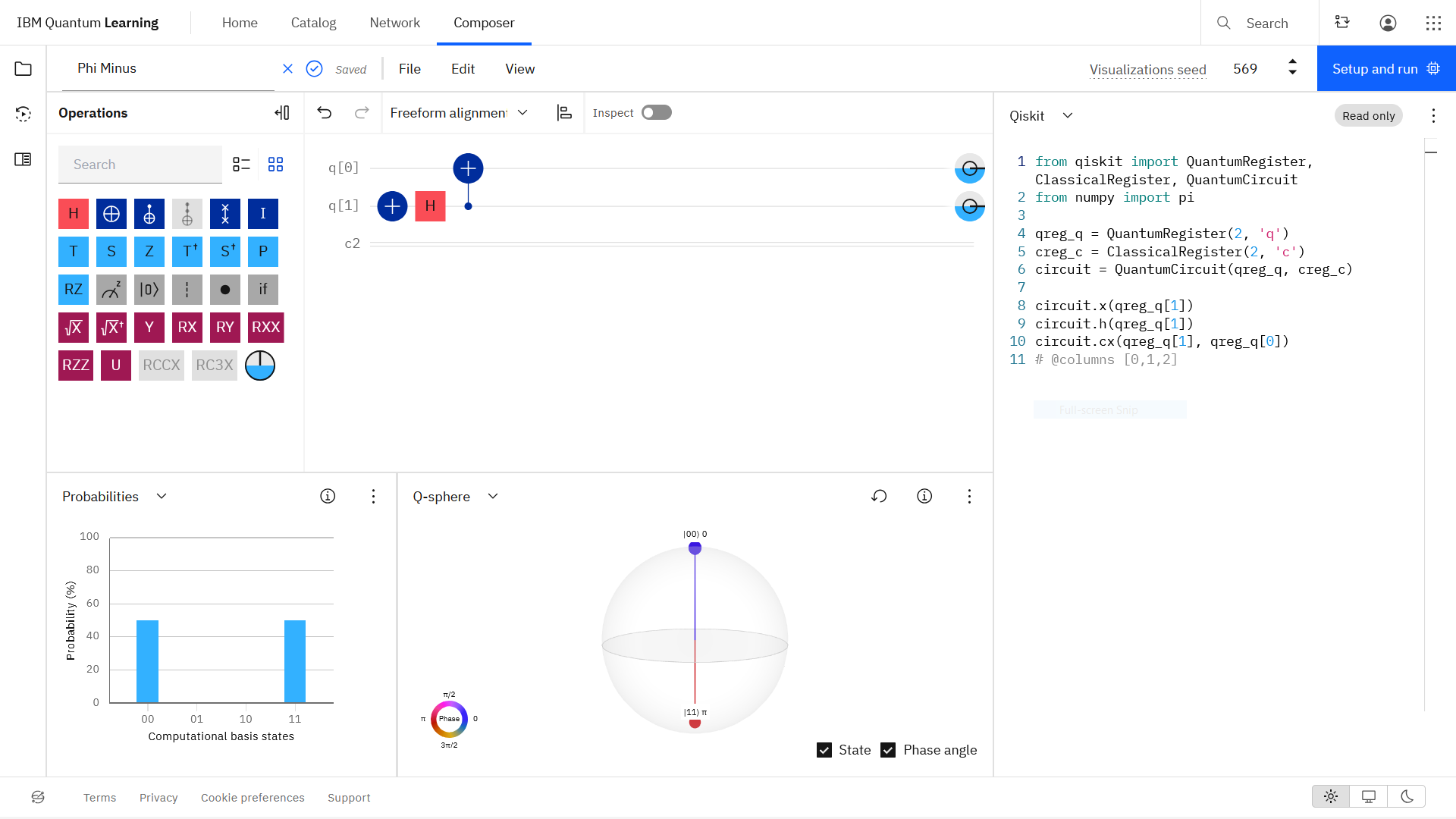

2. Phi Minus State

\(\ket{\Phi^-} = \frac{\ket{00} - \ket{11}}{\sqrt{2}}\)

64104e5bddf442a991fdb3d8b864f2c6

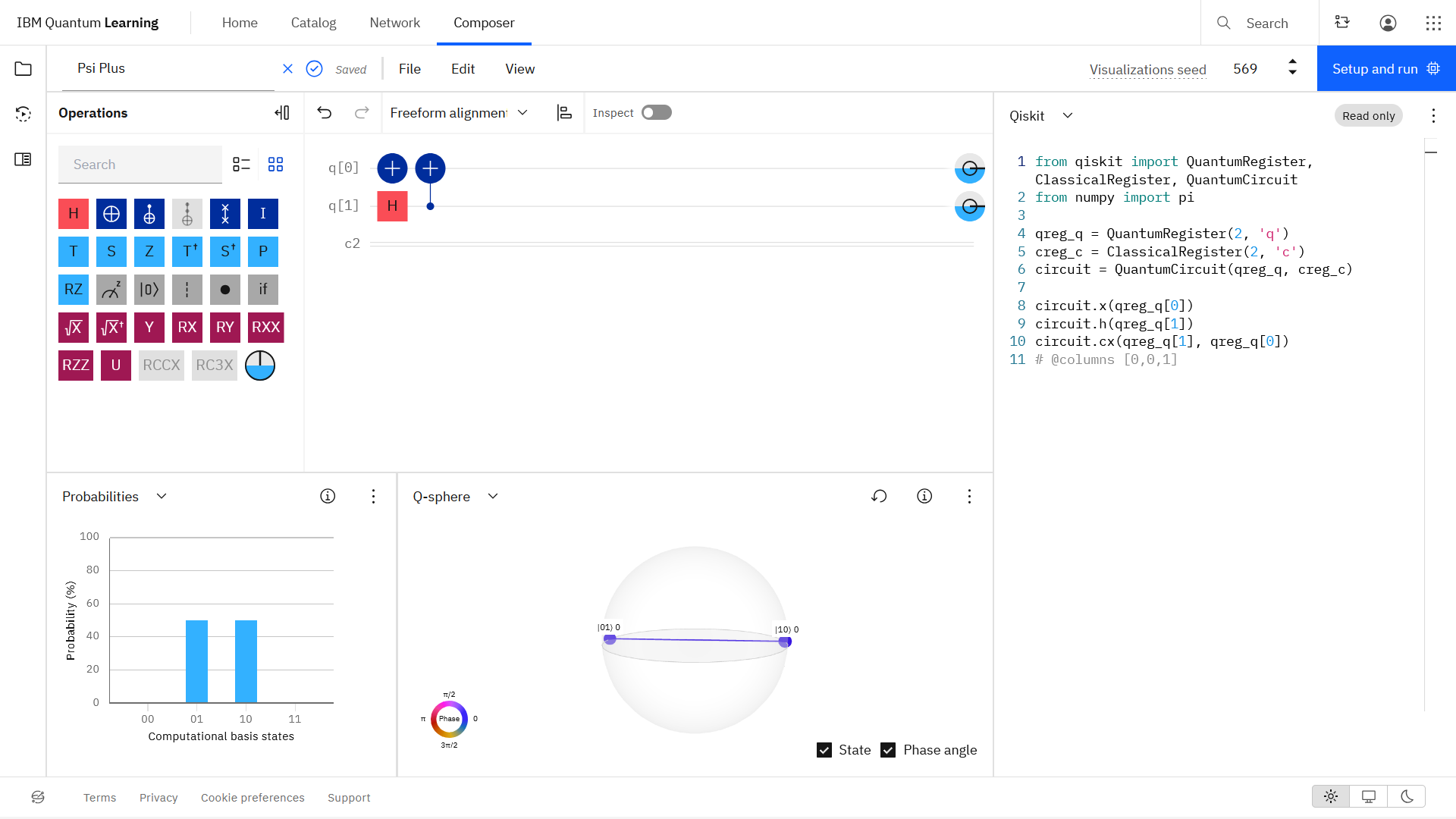

3. Psi Plus State

\(\ket{\Psi^+} = \frac{\ket{01} + \ket{10}}{\sqrt{2}}\)

39d79596ccbd4265aaf14d0e40d50dec

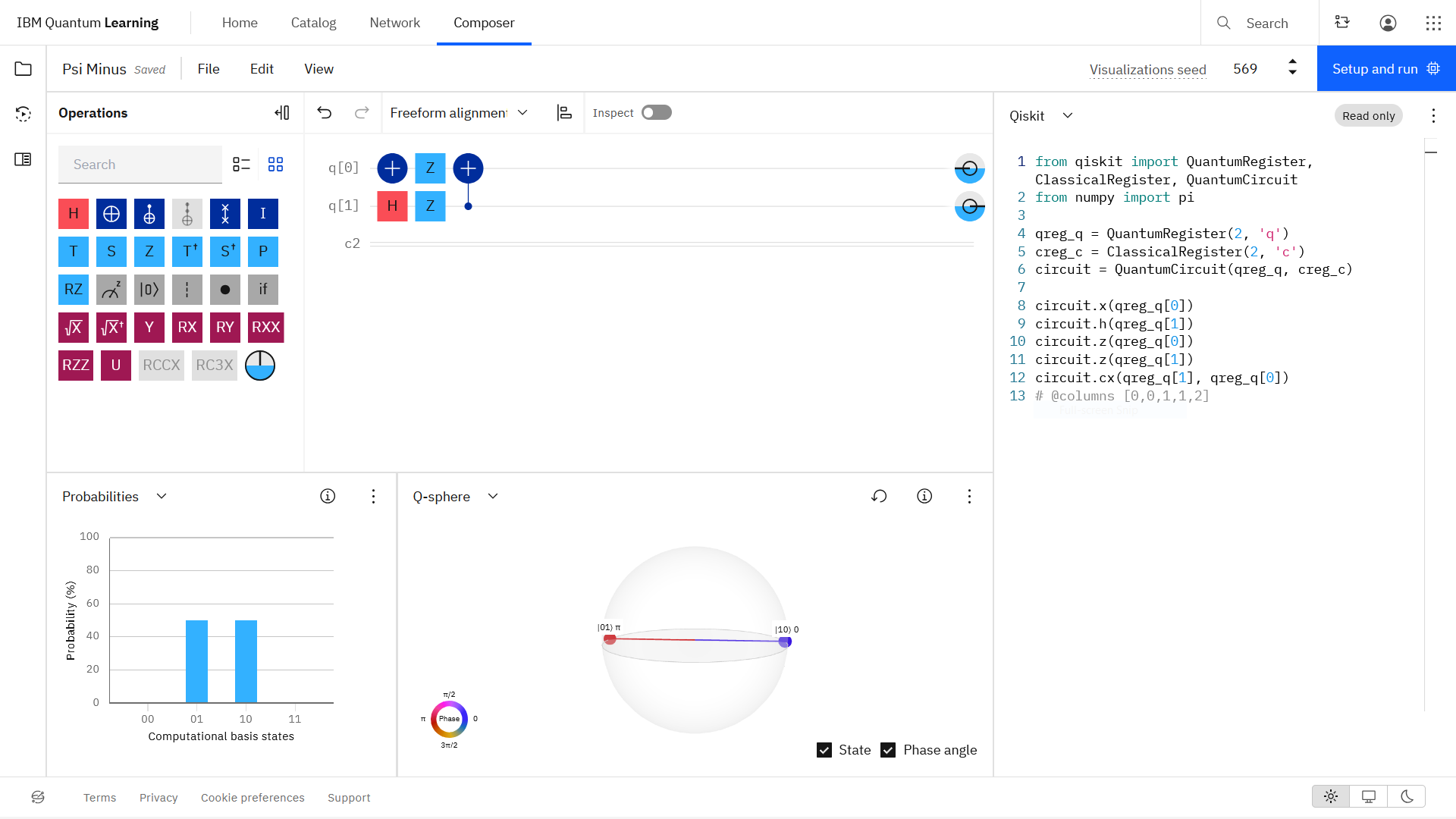

4. Psi Minus State

\(\ket{\Psi^-} = \frac{\ket{01} - \ket{10}}{\sqrt{2}}\)

e7155fd7878e4e41b36f8ea8dc0698e1
